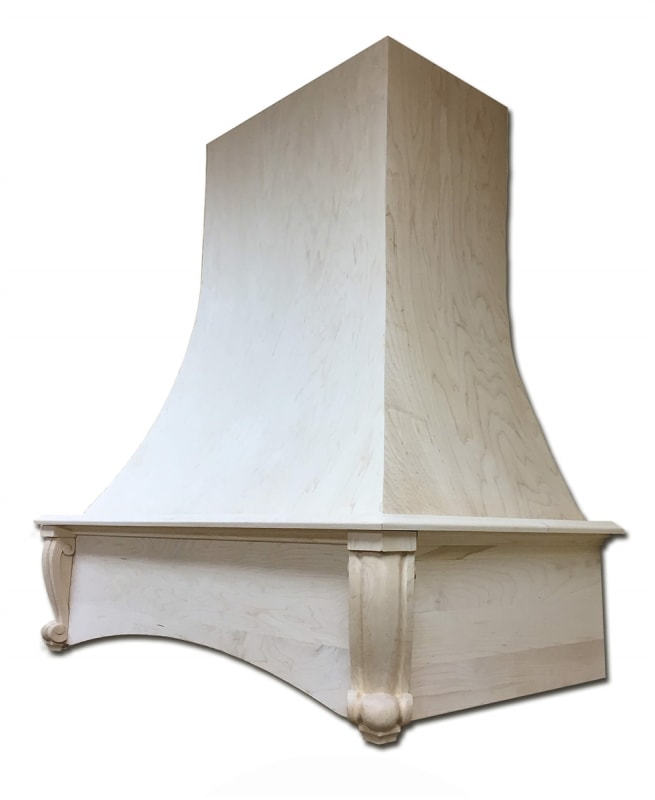

The Castlewood SY-WCVAC Curved Epicurean Elite Wood Range Hood has a veneer, hardwood plywood and solid lumber construction and is available unfinished in cherry, maple and red oak. This wood hood is a beautiful and functional addition to any kitchen. It features a curved design with corner corbels that adds a touch of sophistication to your space while also providing efficient ventilation for cooking.

This hood will come sanded smooth and ready for paint or stain. It also features the removable upper access option which makes it a two-piece construction. This allows for a smoother installation and easy access to the ventilator and ducting.

The multiple height options make it easy to customize for your ceiling height, while the various ventilator options allow you to choose the appropriate CFM fan for your application.

Choose the solid plywood bottom if you are using a third party ventilator that is smaller than the interior opening of this hood.

Available Species

Cherry, Maple and Red Oak

Available Sizes

SY-WCVAC-30-D: 42-1/2" H | 32-9/16" W | 21-1/8" D
SY-WCVAC-36-D: 42-1/2" H | 38-9/16" W | 21-1/8" D
SY-WCVAC-42-D: 42-1/2" H | 44-9/16" W | 21-1/8" D
SY-WCVAC-48-D: 42-1/2" H | 50-9/16" W | 21-1/8" D
SY-WCVAC-3048-D: 48" H | 33-1/4" W | 21-1/2" D
SY-WCVAC-3648-D: 48" H | 39-1/4" W | 21-1/2" D
SY-WCVAC-4248-D: 48" H | 45-1/4" W | 21-1/2" D
SY-WCVAC-4848-D: 48" H | 51-1/4" W | 21-1/2" D
SY-WCVAC-3054-D: 54" H | 33-1/4" W | 21-1/2" D

SY-WCVAC-3654-D: 54" H | 39-1/4" W | 21-1/2" D
SY-WCVAC-4254-D: 54" H | 45-1/4" W | 21-1/2" D
SY-WCVAC-4854-D: 54" H | 51-1/4" W | 21-1/2" D

Additional Info

These wood range hood covers are designed to accept the liners and ventilators listed on this page as options. If you have a third party ventilator, please contact us to make sure the unit will fit. Most third party ventilators will require customization to the hood.

If you are struggling to decide which ventilator is the right fit for you, consider the range or cooktop this hood will cover. Electric cooktops generally require a lower CFM than gas cooktops.

The removable upper access option is designed to make installation of the duct work easier. It is also beneficial if any building code inspections are necessary. The hood will come in two pieces which allows the bottom portion of the hood to be mounted to the wall first so the liner, ventilator and duct-work can be installed and inspected before the upper portion of the hood is installed. This construction maintains the integrity of the hood design and eliminates the need for extra corner molding to hide seams between adjoining panels.

Range hoods are large shipments and thus are shipped LTL freight. If this is being shipped to a residence, the carrier will contact you to schedule a delivery appointment.

This range hood qualifies for FREE SHIPPING! The hood, ventilator, and liner will be securely wrapped and packaged on a pallet. The pallet will be delivered LTL Freight through one of our approved carriers. Free shipping includes all the fees associated with a freight shipment like residential delivery fees and lift gate service fees. The lift gate service is used on residential deliveries, by the carrier, to lower the pallet off the truck so you do not have to off load it yourself.

Veneer, Hardwood Plywood and Solid Lumber Construction
1/2" Rear Plywood Stretchers for wall mounting
Accepts SY-HLB series rectangular Powder Coated Steel Liners (sold separately)
Select from 300, 400 or 600 Broan CFM Ventilation power packs (sold separately) or
Ascension 350SL, 350SS, 500 and 620 CFM Ventilation power packs (sold separately)
Available in Cherry, Maple and Red Oak
Includes Removable Upper Access (2-Piece Constrcution)
Base section will accommodate Ornament sizes up to 6" x 24"
